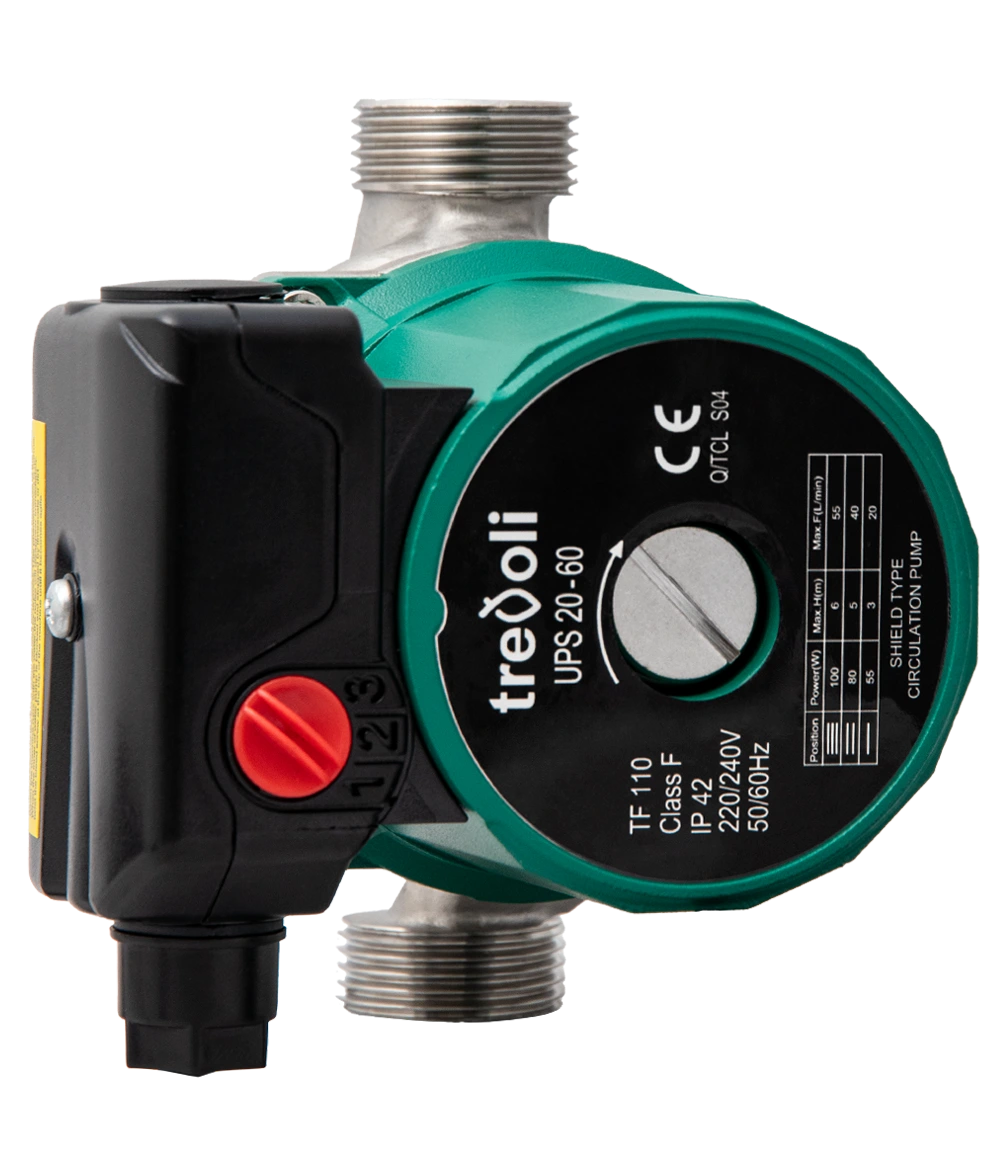

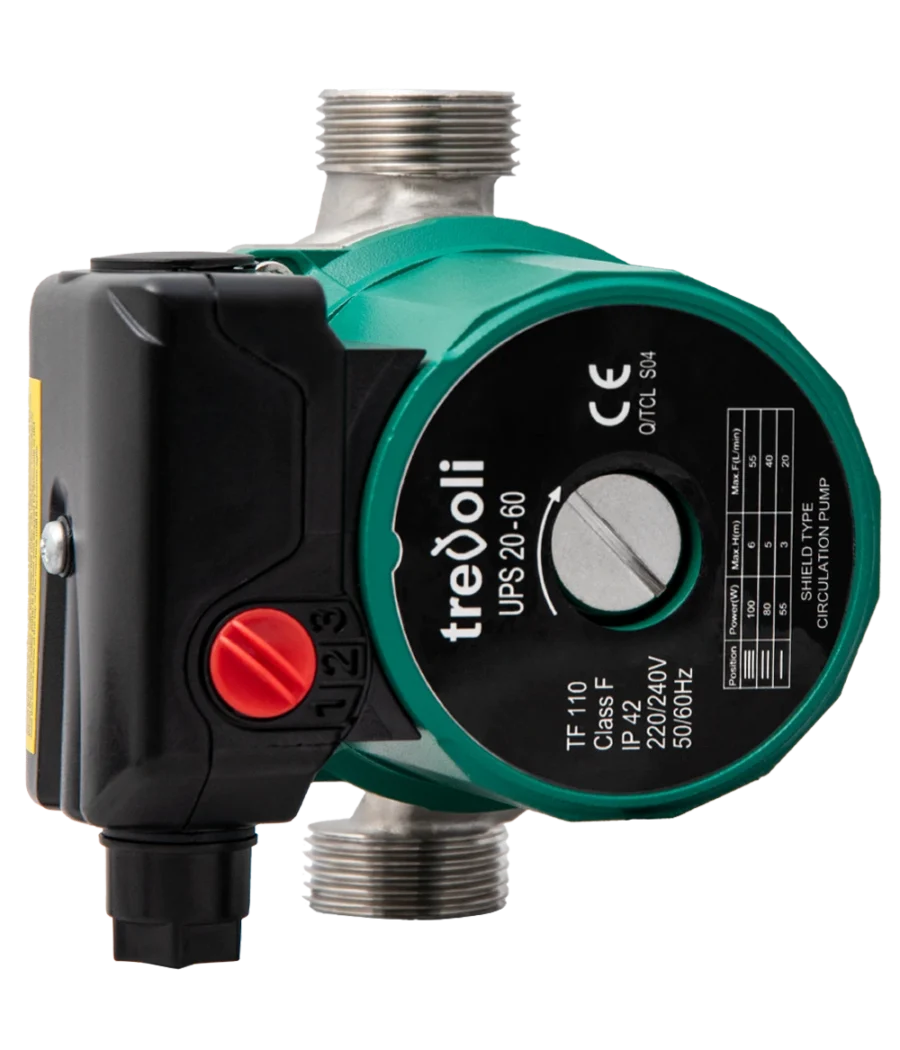

Trevoli UPS 20-60 3 Speed Circulation Pump – Stainless Steel Bodied for Solar

The Trevoli UPS 20-60 is a reliable, maintenance-free canned-rotor circulation pump ideal for solar hot water systems, heating, and air-conditioning applications. With 3-speed settings and low energy consumption, it delivers efficient flow while minimising noise and power use.

Key Features & Specifications

• Model: UPS 20-60
• Prewired plug add play
• Speeds: 3-speed (Speed 1: 46W, Speed 2: 90W, Speed 3: 100W)
• Max Head: Speed 1: 3m, Speed 2: 5m, Speed 3: 6m
• Max Flow Rate: Speed 1: 25 L/min, Speed 2: 40 L/min, Speed 3: 50 L/min
• Liquid Temperature Range: 0–110°C
• Domestic Hot Water: Max 65°C continuous, peak 70°C; max 14 °dH hardness
• Materials: Corrosion-resistant stainless steel pump housing, bearings lubricated by pumped liquid, canned-rotor design (no shaft seal)
• Connections: 20mm unions (brass), port-to-port 130mm
• Max Operating Pressure: 10 bar
• Enclosure Class: IP42
• Insulation Class: F
• Duty: Continuous operation
• Pumped Liquid: Clean, thin, non-aggressive liquids without solids/fibres (softened water, cooling liquids without mineral oil)

Why Choose Trevoli UPS 20-60?

This pump offers low energy consumption, low noise, and maintenance-free operation. The stainless steel housing resists corrosion, and the integral pump-motor design ensures reliability. Perfect for open/closed systems, including solar flow/return lines, boiler shunts, underfloor heating, heat pumps, and wetback integration.

Common Applications

• Solar hot water circulation from collectors to the cylinder
• Heating systems (one/two-pipe, zone pumps, calorifiers)
• Heat recovery, geothermal, and heat pump setups

Installation Notes

Install per manufacturer guidelines and NZ plumbing standards (G12/AS1). Unions allow easy servicing. A professional plumber is recommended for compliance.
